Camera (2D horizontal)
(3,5 X 4,3) MM
11.280,00 € excl. VAT
Description

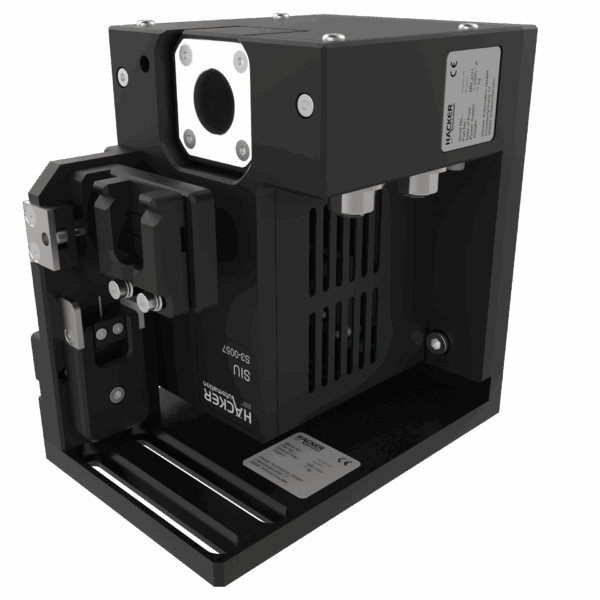

The Camera is a Subside Inspection Unit (S3-0057) rotated by 90° in a special holder. The Camera is used for measuring components in a horizontal direction. The captured image data is processed using the system control software.
The monochrome camera has a programmable ring light and an interior light and the option to control an external lighting.
Additional information
| Dimensions in mm (W x D x H) | 92.5 x 135 x 137 |
|---|---|
| Weight in kg | 2 |
| Type of lens | Telecentric objective |
| Field of view in mm (W x H) | 3.5 x 4.3 |
| Resolution camera in µm | 6 |
| Voltage in V | 48 |
| Max. current in A | 0.5 |
| Communication interface | Ethernet |
