Camera

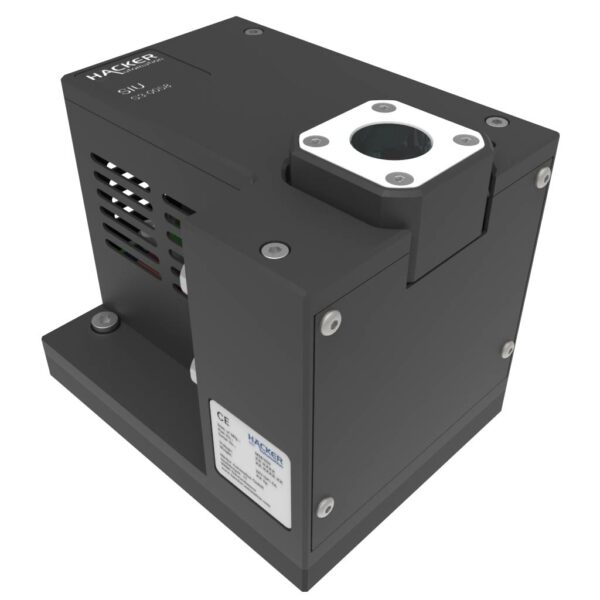

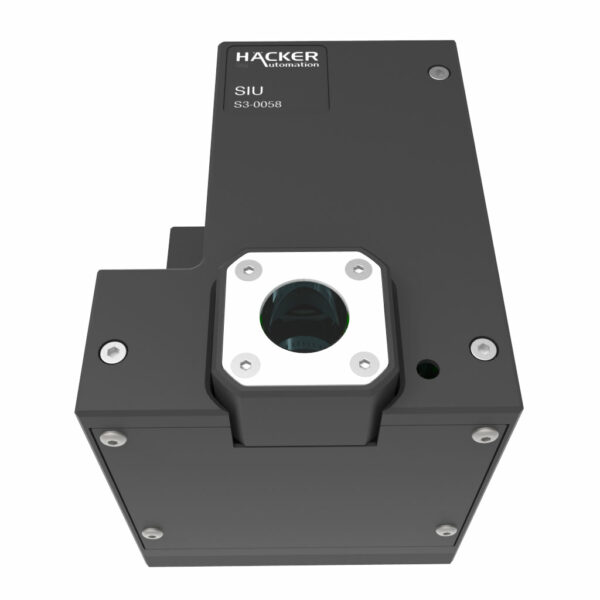

Subside Inspection Unit
(7,1 x 8,5) mm
Description
The Subside Inspection Unit is used to measure the underside of components. The exact measurement guarantees a high assembly accuracy.
The monochrome camera has a programmable ring light and an interior light and the option to control an external lighting.
Additional information
| Dimensions in mm (W x D x H) | 92.5 x 120 x 107 |
|---|---|
| Weight in kg | 1.4 |
| Type of lens | Telecentric objective |
| Field of view in mm (W x H) | 7.1 x 8.5 |
| Resolution camera in µm | 9 |
| Voltage in V | 48 |
| Max. current in A | 0.5 |
| Communication interface | Ethernet |
