The patented dispensing technology of the dispenser D-X30 applies volumes in the single-digit nanoliter range. The extraordinary precision is guaranteed by the control loop-based method with automatic regulation of the dispensing parameters in the event of viscosity or temperature fluctuations. Thus, consistent results are achieved throughout the process.
For optimal process monitoring, a tiny camera is attached to the top of the processing head. It provides a permanent live image with micrometer resolution of the needle.

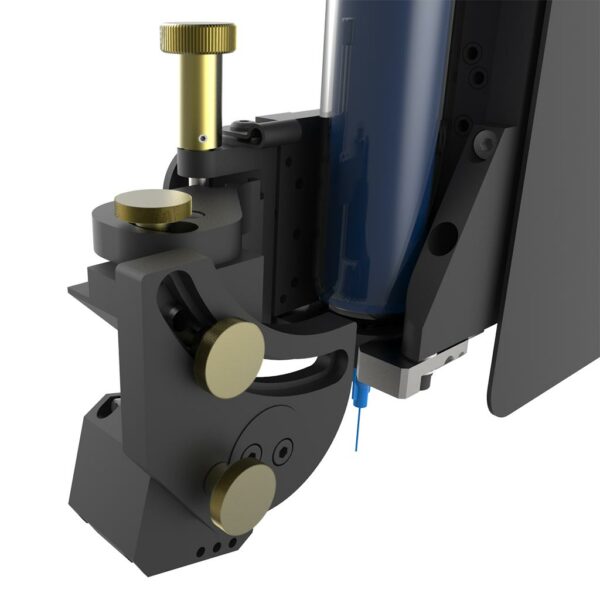

An integrated needle heating (20 °C … 130 °C) heats the dispensing material up to the optimum process temperature.

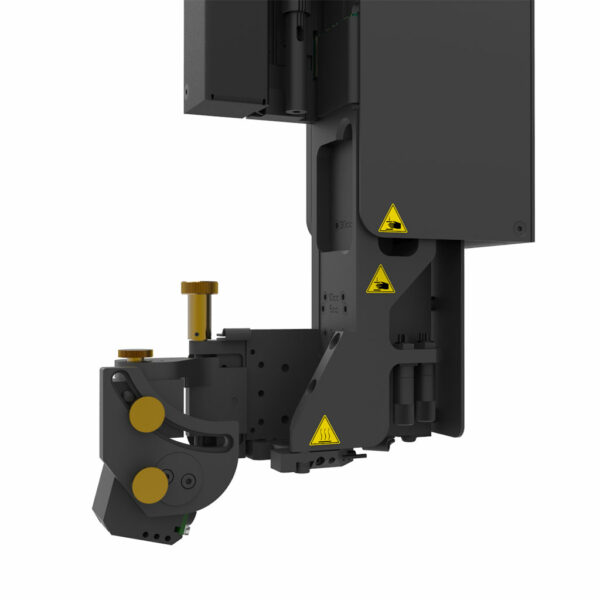

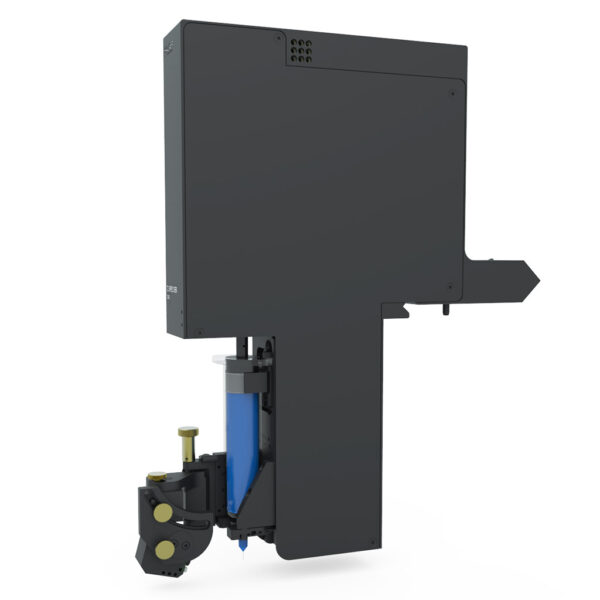

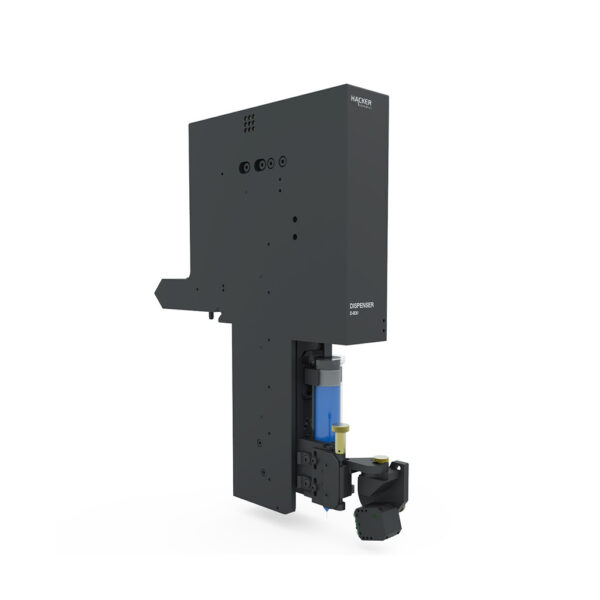

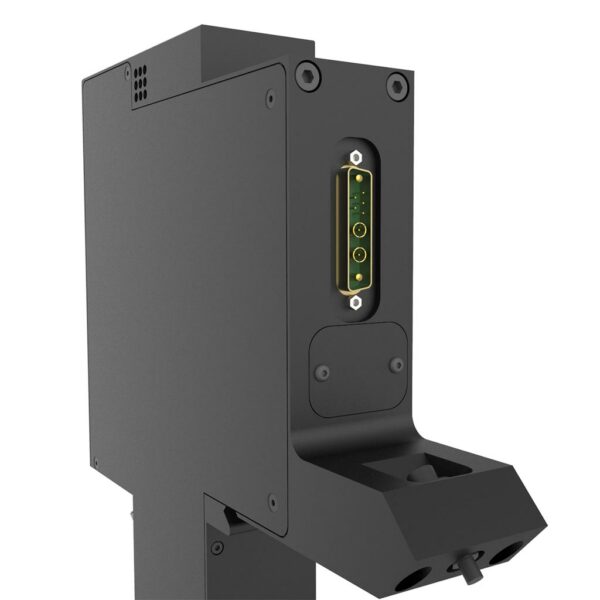

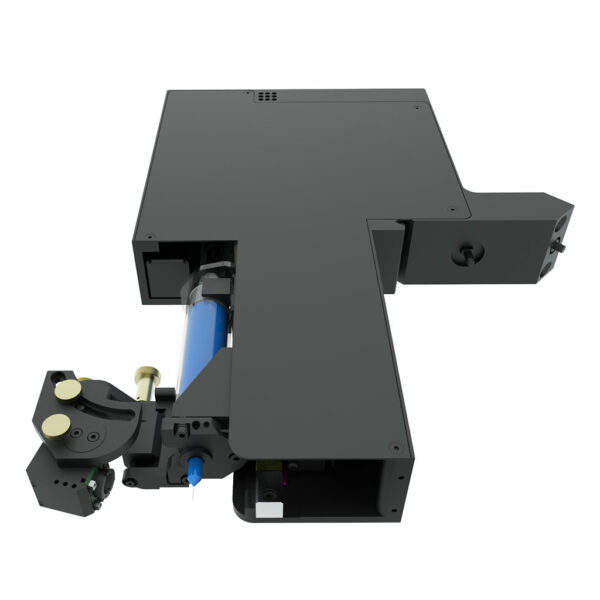

Dispenser D-X30
19.200,00 € excl. VAT
Description
Additional information
| Dimensions in mm (W x D x H) |
49 x 292 x 341 |
|---|---|
| Weight in kg |
4.8 |
| Movement range in Z in mm |
150 |
| Cartridge holder EFD |
10 cc, 3 cc, 30 cc, 5 cc |
| Cartridge holder SEMCO |
10 cc, 30 cc, 5 cc |
| Min. dispensing volume in µl |
0.01 |
| Max. temperature in °C |
130 |
| Voltage in V |
24 |
| Max. current in A |
4 |
| Communication interface |
UNICAN |
