Feeding Equipment
Gel-Pak® Support (4x 2″)
5.400,00 € excl. VAT
Description

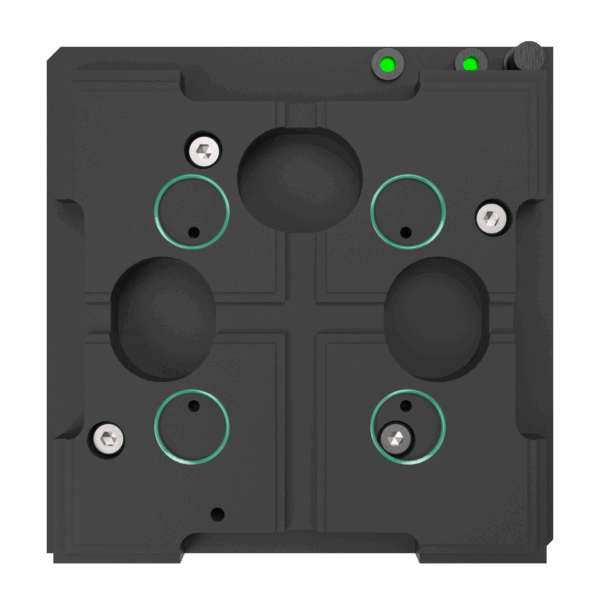

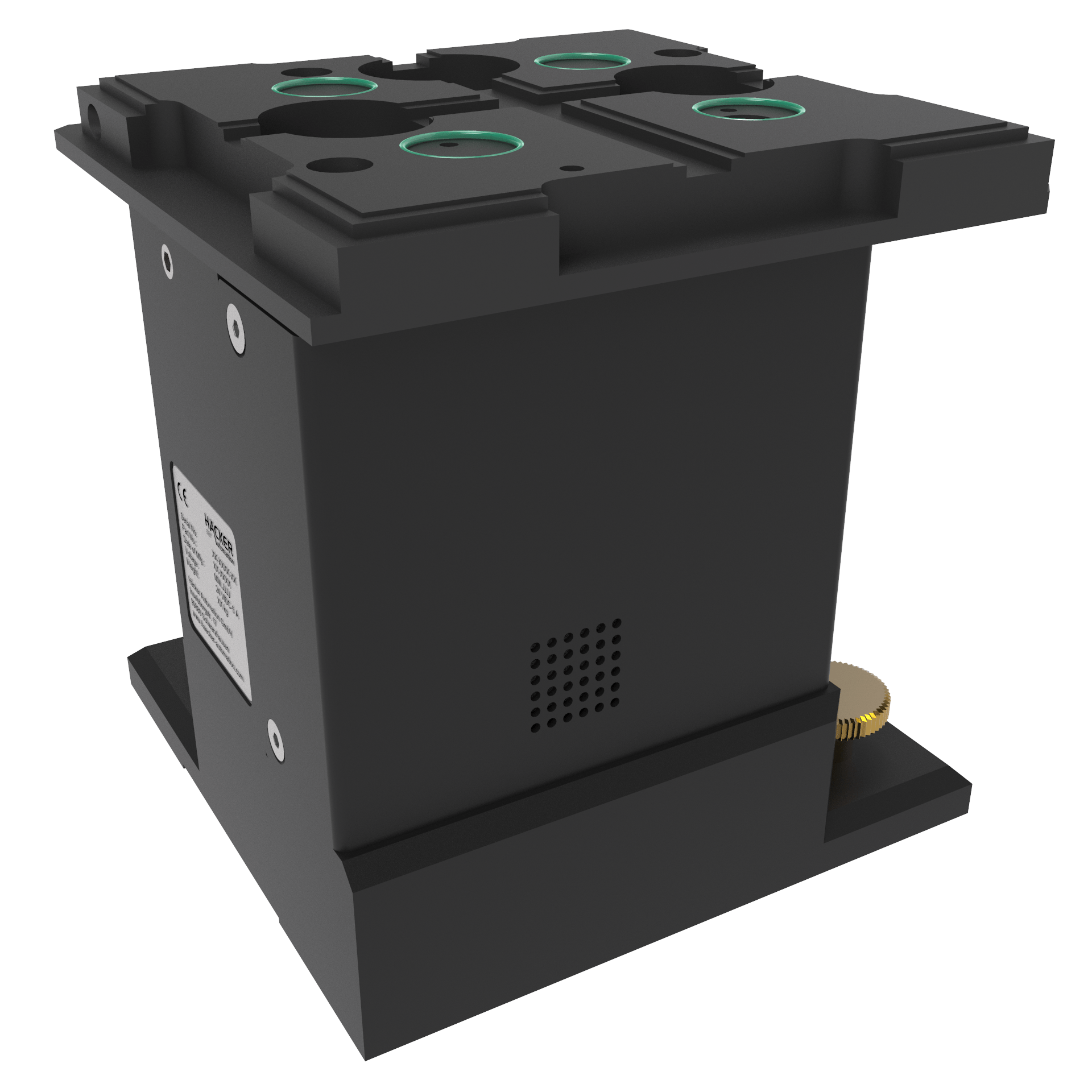

Gel-Pak® Support is a vacuum supported tray for up to four 2″ large magazines.
Several Gel-Pak Supports can be installed at different positions on the machine base plate if required. This shortens the movement range and thus supports cycle time optimisation.
Loading and unloading is done manually. The vacuum is provided by means of compressed air via the integrated vacuum generator. Switching the vacuum on and off is controlled by the software or via a button on the module.
Additional information
| Abmessungen in mm (B x T x H) |
110 x 110 x 114 |
|---|---|
| Gewicht in kg |
2.5 |
| Max. Magazingröße in Zoll / mm (B x T) |
2 x 2 / 50 x 50; 3 x 3 / 75 x 75 or 4 x 4 / 100 x 100 |
| Max. Anzahl Magazine |
4 |
| Spannung in V |
24 |
| Max. Stromstärke in A |
0.25 |
| Kommunikationsschnittstelle |
UNICAN |
