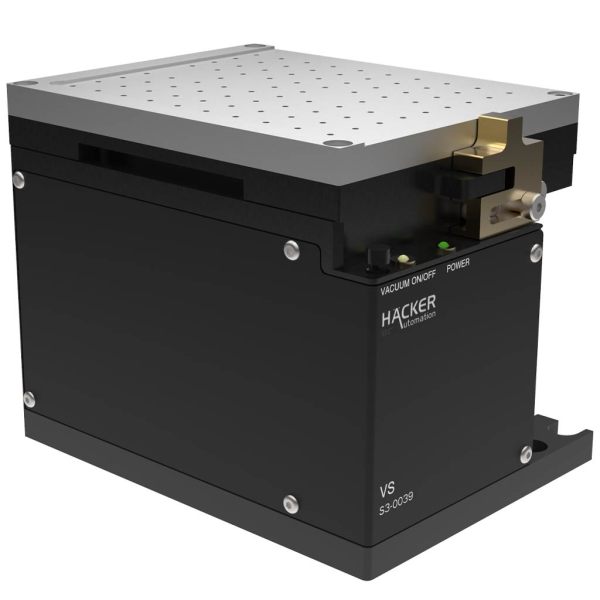

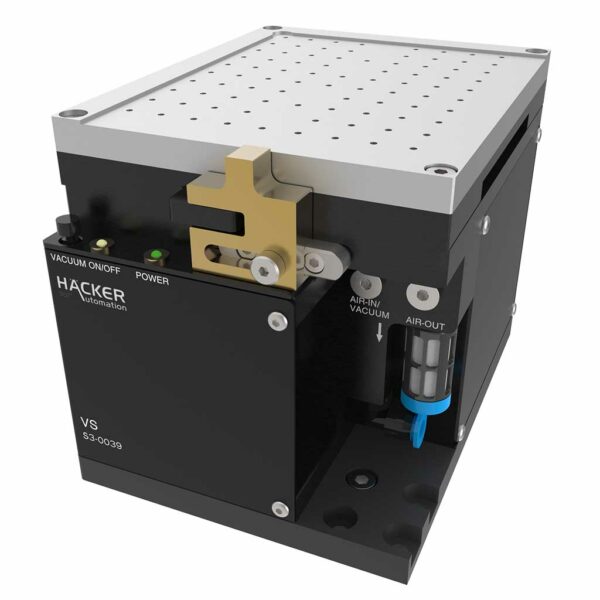

The Vacuum Support with 4 inch adapter plate fixes substrates up to a size of 4 x 5 inches. In order to keep substrates in the required position, a vacuum is generated on the support surface. Thus, the often insufficient adhesive properties of very thin and light carrier materials like foils, ceramics or flexible circuit boards can be compensated.

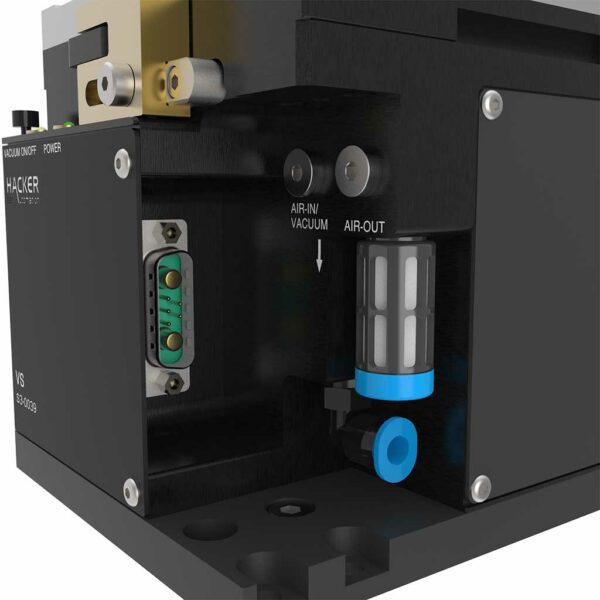

Particularly in processes with high accuracy requirements, the Vacuum Support ensures a stable position of the substrate during the entire processing operation. The vacuum is provided by means of compressed air via the integrated vacuum generator or is supplied directly via the vacuum connection.

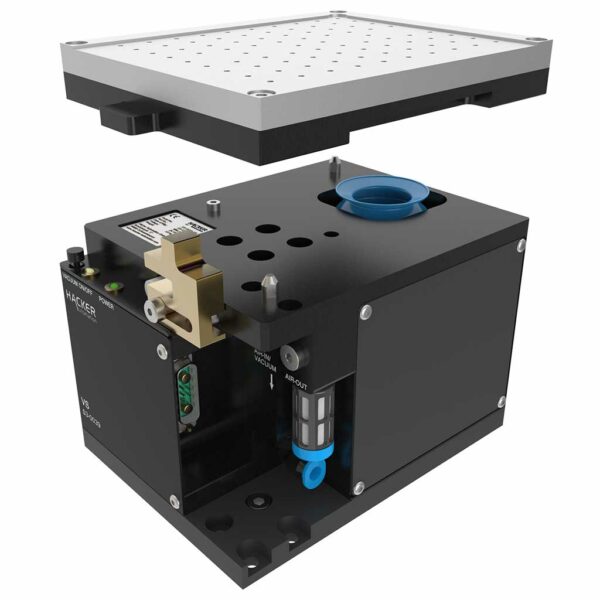

The adapter plate is exchangeable and optionally available in sizes from 4 to 8 inches.

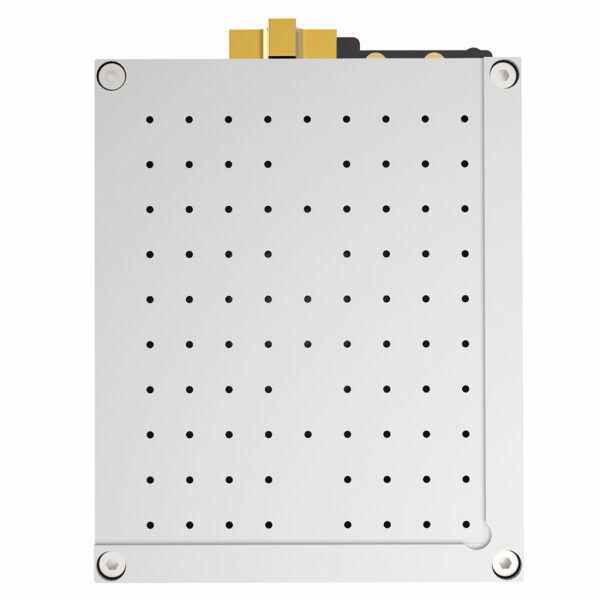

The scope of delivery includes a flat 4 inch vacuum adapter plate.
