Feeding Equipment
Heating Support
11.800,00 € excl. VAT
Description

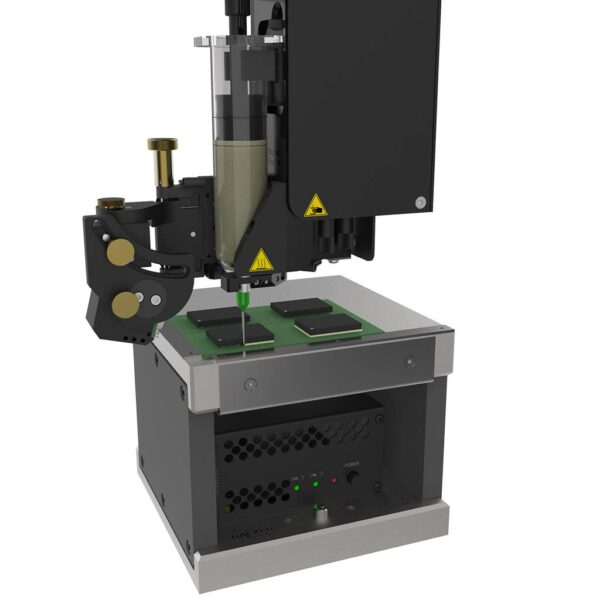

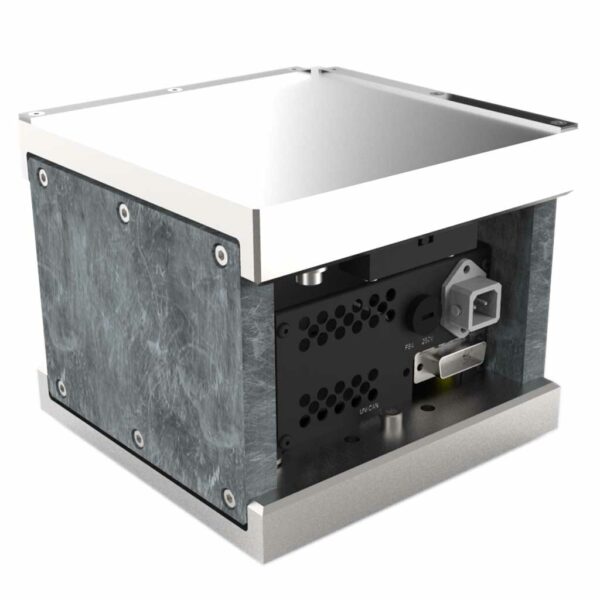

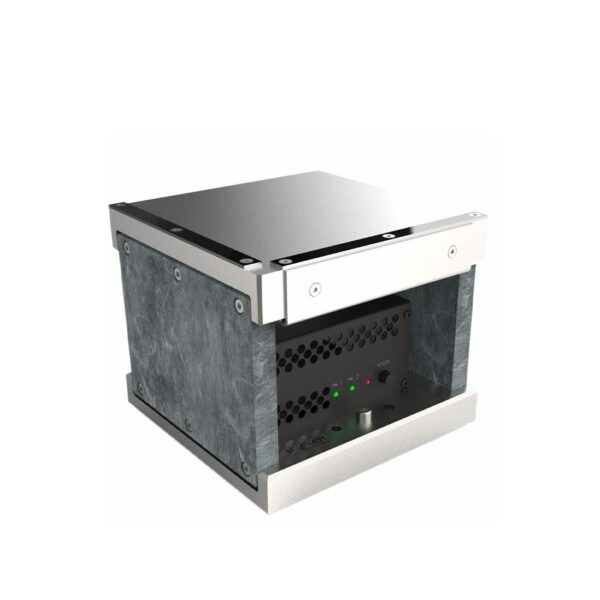

The Heating Support heats on it up to (5 x 5) inches size stainless steel heating surface the materials via convection and heat conduction up to a maximum of 100 °C. The regulated heating temperature is set via the control software.
The heating surface can be adapted via product-specific adapter plates.
Additional information
| Dimensions in mm (W x D x H) |
146 x 146 x 121.5 |
|---|---|
| Max. size of components in inch / mm (W x D) |
5 x 5 / 125 x 125 |
| Max. temperature in °C |
100 |
| Voltage in V |
24; 230 |
| Max. current in A |
0.25; 1 |
| Communication interface |
UNICAN |
