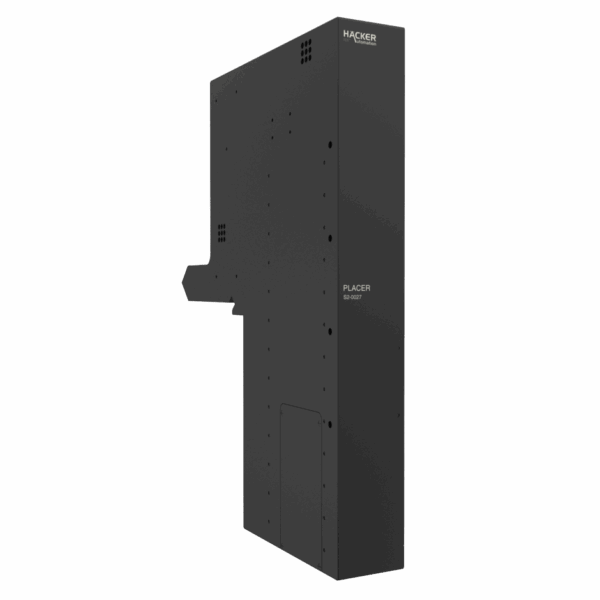

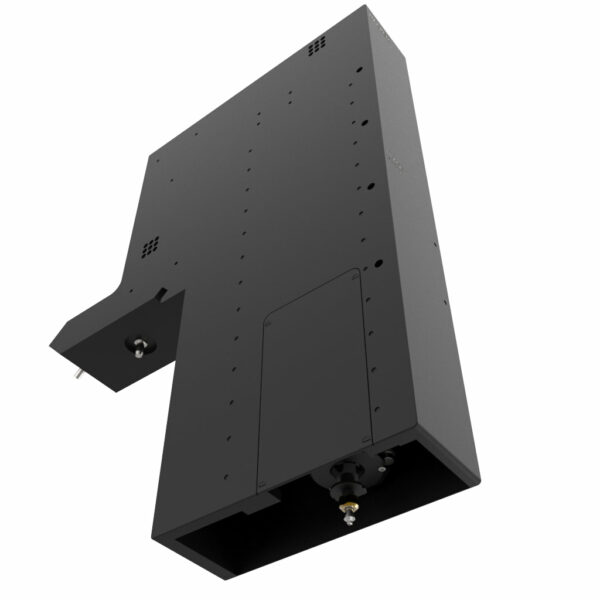

The Placer is a placement head designed for accurate alignment as well as placement of components. The head can be equipped with both standard and process-specific tools. The spectrum ranges from vacuum-based tools for component placement to punches for pin transfer processes. In addition, a Z-axis stroke of 150 mm guarantees exceptional reach. This means that even positions in deep cavities can be reached without any problems.
Placer
23.400,00 € excl. VAT
Description
Additional information
| Dimensions in mm (W x D x H) |
49 x 261 x 341 |
|---|---|
| Weight in kg |
4.8 |
| Movement range in Z in mm |
150 |
| Accuracy z-axis in mm |
± 0.001 |
| Force measuring range in N |
10 … 50 |
| Movement range rotation axis in degree |
0 … 360 |
| Resolution rotation axis in arcsec |
± 6 ,24 |
| Voltage in V |
48 |
| Max. current in A |
3.2 |

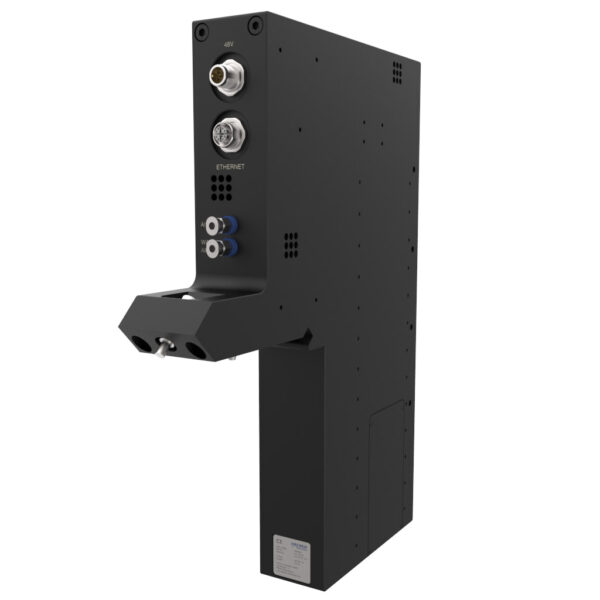

| Communication interface |
Ethernet |
