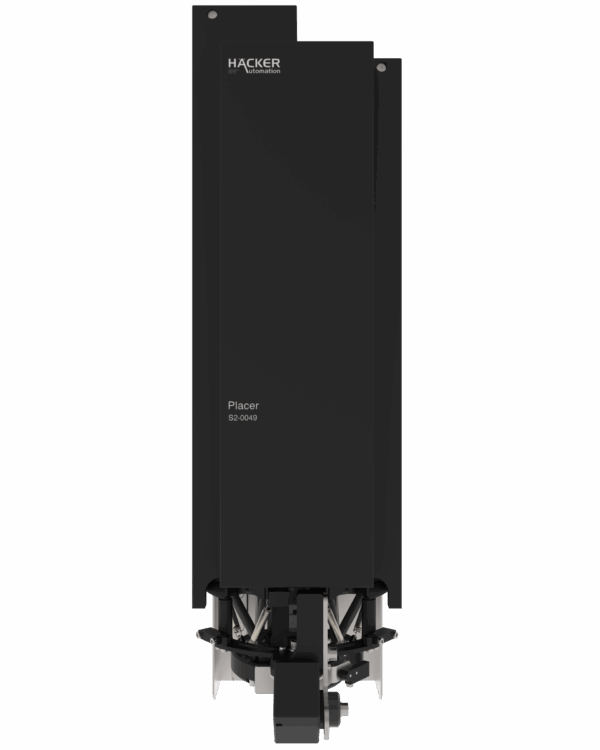

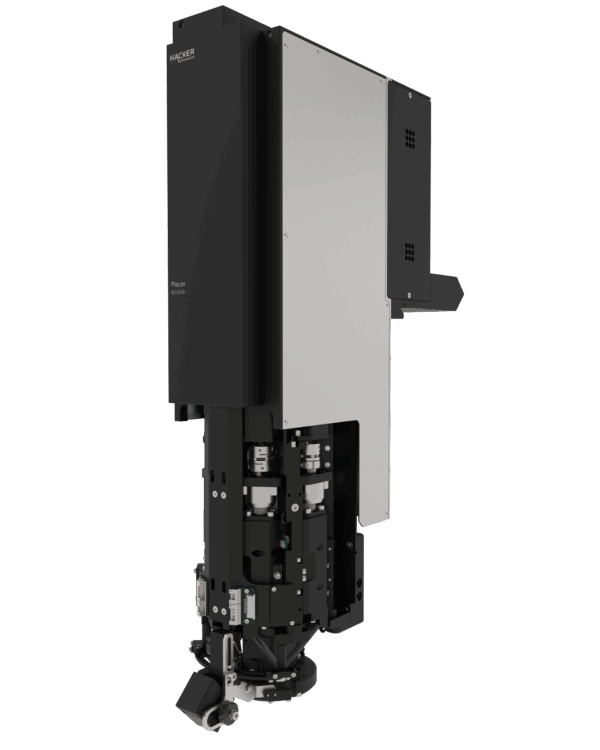

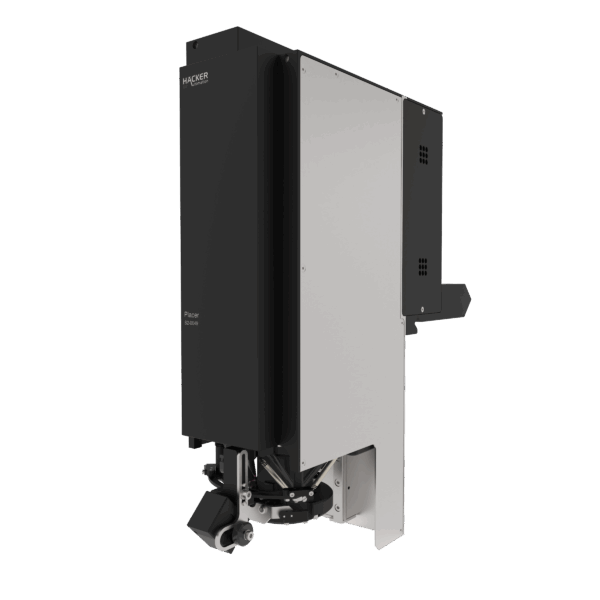

Placer (3D, Vacuum tool)
110.000,00 € excl. VAT
Description
The Placer (3D, Vacuum tool) was specially developed for active alignment tasks.

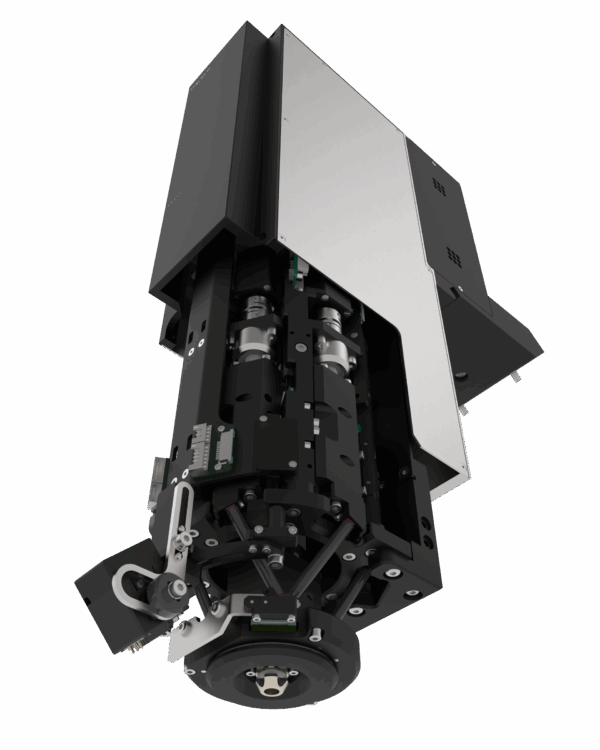

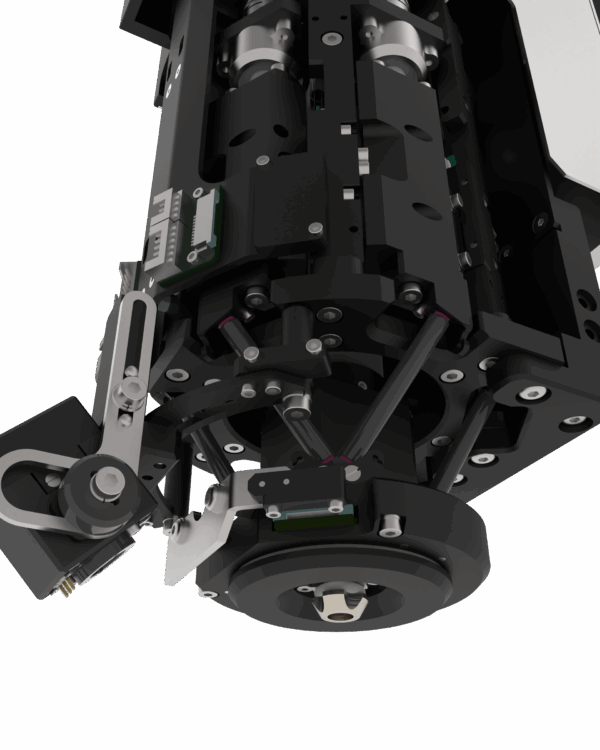

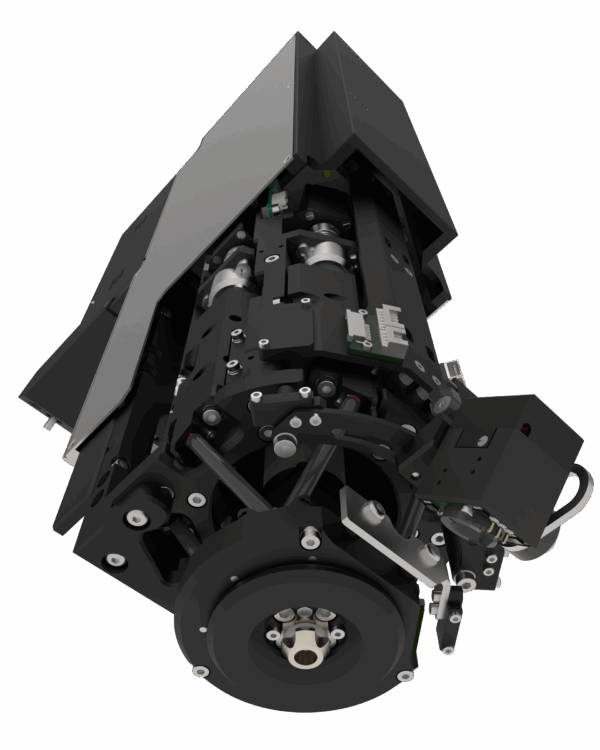

In addition to a travel range of 150 mm in the Z direction, it has a movement range of +/- 50° around the movement axis. A hexapod with six axes, with movements in all 6 degrees of freedom was developed for the fine positioning and alignment of optical components. Vacuum tools can be attached to it. An additional adjustable observation camera allows the processing area to be viewed. The range of functions can also be expanded to include contact pins, UV lamps, etc..
Additional information
| Abmessungen in mm (B x T x H) |
99 x 294 x 366 |
|---|---|
| Gewicht in kg |
11 |
| Zul. Produktgewicht am Hexapod in g |
500 |
| Verfahrbereich in Z in mm |
150 |
| Genauigkeit Z-Achse in mm |
± 0.001 |
| Bewegungsbereich A-Achse in Grad |
± 50 |
| Spannung in V |
48 |
| Max. Stromstärke in A |
3.2 |
| Kommunikationsschnittstelle |
Ethernet |
| Funktionstemperaturbereich in °C |
20 … 35 |
