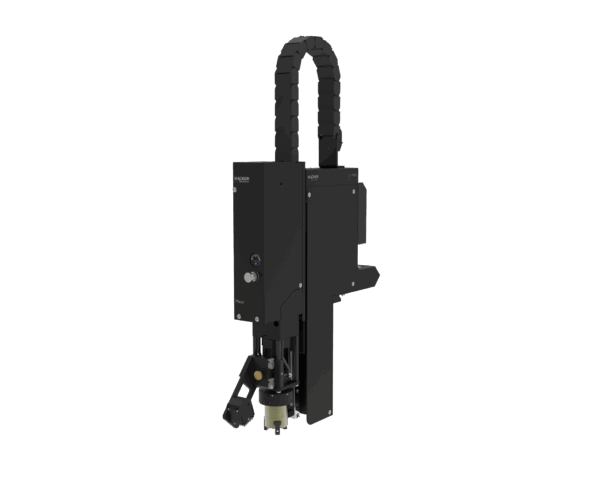

Placer GR (MPZ30)
22.700,00 € excl. VAT
Description
The Placer GR is a processing head that aligns and places components based on a mechanical gripper system. It is used when components cannot or must not be picked up using a vacuum tool.
The placer contains a three-jaw gripper. According to the geometry of the customer-specific components, the gripper fingers are developed individually.
Furthermore, the Placer GR has a rotation axis which allows the gripper to rotate 360°.
Additional information
| Dimensions in mm (W x D x H) |
49 x 309 x 514 |
|---|---|
| Weight in kg |
5.5 |
| Movement range in Z in mm |
150 |
| Accuracy z-axis in mm |
0,02 |
| Resolution Z-axis in µm |
4 |
| Max. Speed Z-axis in mm/s |
1000 |
| Movement range rotation axis in degree |
0 … 360 |
| Voltage in V |
24 |
| Max. current in A |
4 |
| Communication interface |
UNICAN |
| Operating temperature in °C |
20 … 35 |
| Gripper |
Three-jaw gripper (Centric gripper MPZ30) |
