Placer GS (PG12)
19.000,00 € excl. VAT
Description

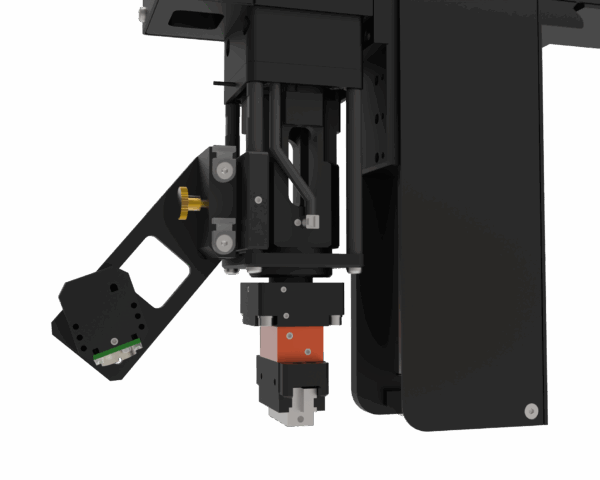

The Placer GS is a processing head that aligns and places components based on a mechanical gripper system. It is used when components cannot or must not be picked up using a vacuum tool.
The placer contains a two-jaw gripper. According to the geometry of the customer-specific components, the gripper fingers are developed individually.
Additional information
| Dimensions in mm (W x D x H) | 49 x 309 x 514 |
|---|---|
| Weight in kg | 5.5 |
| Movement range in Z in mm | 150 |
| Accuracy z-axis in mm | 0,02 |
| Resolution Z-axis in µm | 4 |
| Max. Speed Z-axis in mm/s | 1000 |
| Voltage in V | 24 |
| Max. current in A | 4 |
| Communication interface | UNICAN |
| Operating temperature in °C | 20 … 35 |
| Gripper | Two-jaw gripper (Precision gripper PG12) |
