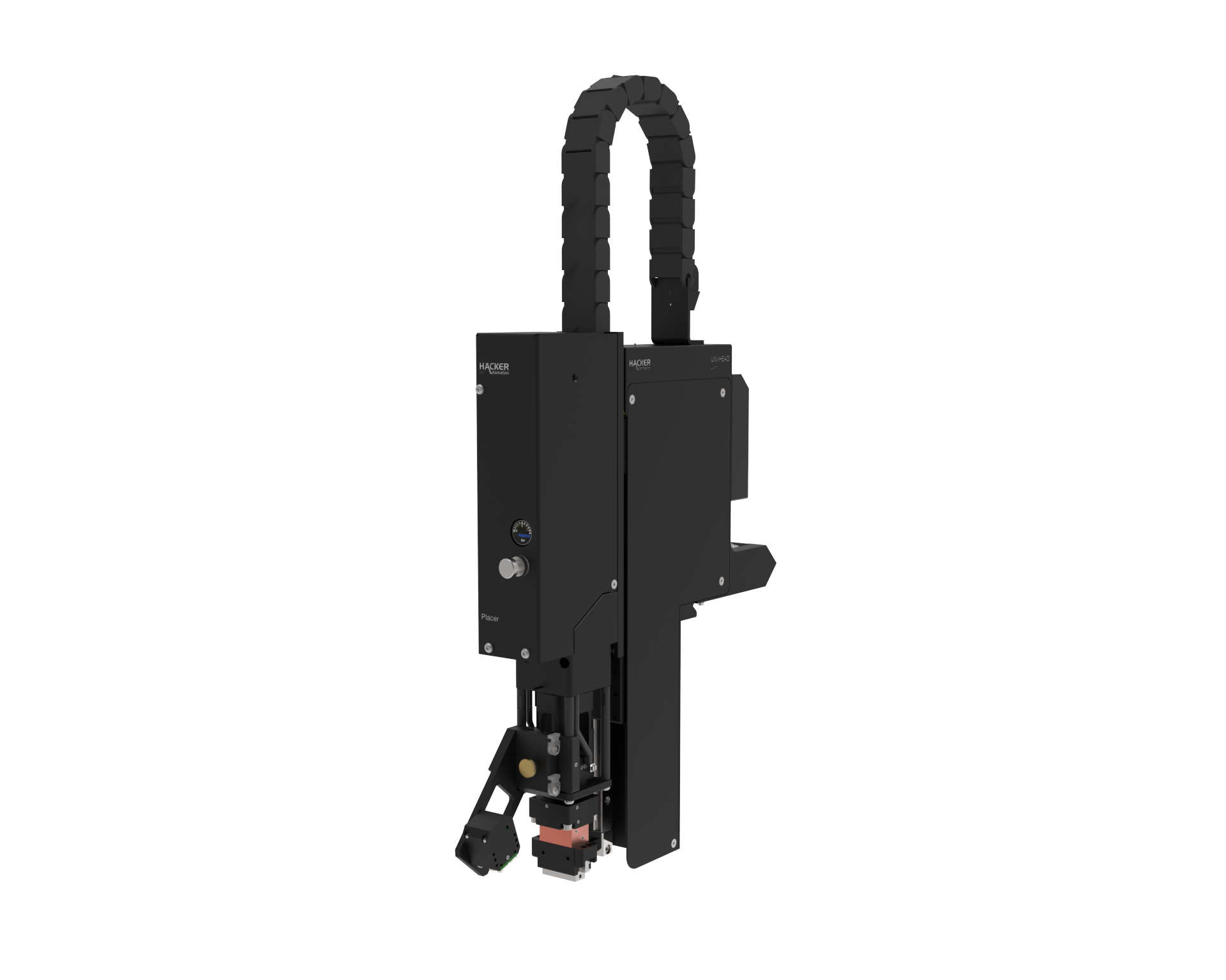

Placer GS (PG16)
19.100,00 € excl. VAT
Description
The Placer GS is a processing head that aligns and places components based on a mechanical gripper system. It is used when components cannot or must not be picked up using a vacuum tool.
The placer contains a two-jaw gripper. According to the geometry of the customer-specific components, the gripper fingers are developed individually.
Additional information
| Abmessungen in mm (B x T x H) |
49 x 309 x 514 |
|---|---|
| Gewicht in kg |
5.5 |
| Verfahrbereich in Z in mm |
150 |
| Genauigkeit Z-Achse in mm |
0,02 |
| Auflösung Z-Achse in µm |
4 |
| Max. Geschwindigkeit Z-Achse in mm/s |
1000 |
| Spannung in V |
24 |
| Max. Stromstärke in A |
4 |
| Kommunikationsschnittstelle |
UNICAN |
| Funktionstemperaturbereich in °C |
20 … 35 |
| Greifer |
Two-jaw gripper (Precision gripper PG16) |
