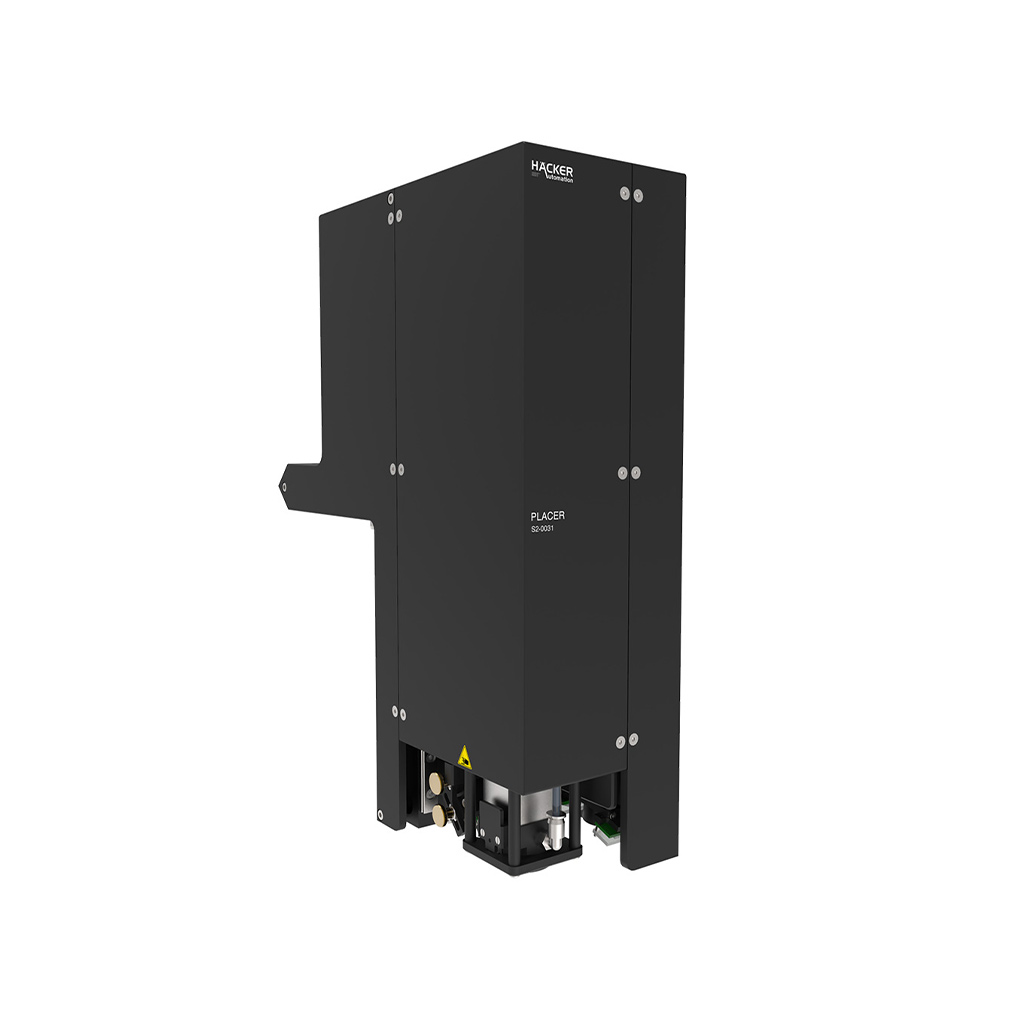

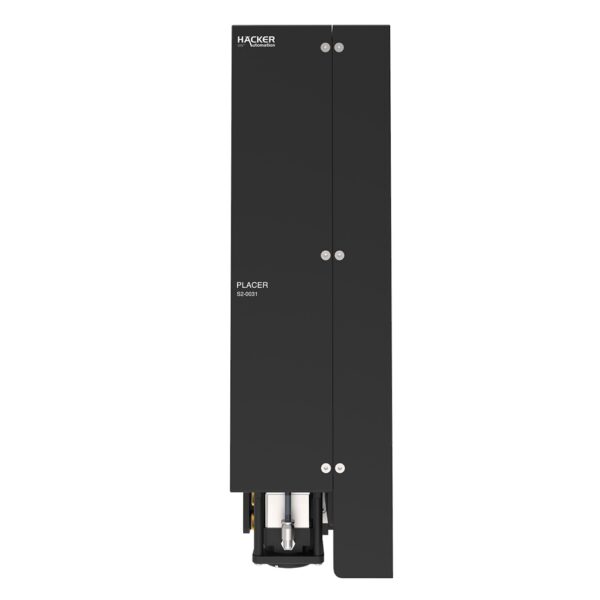

Placer P
51.500,00 € excl. VAT
Description

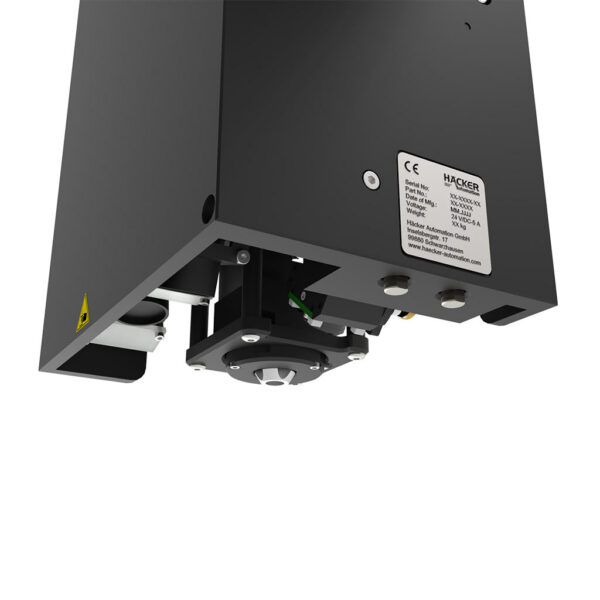

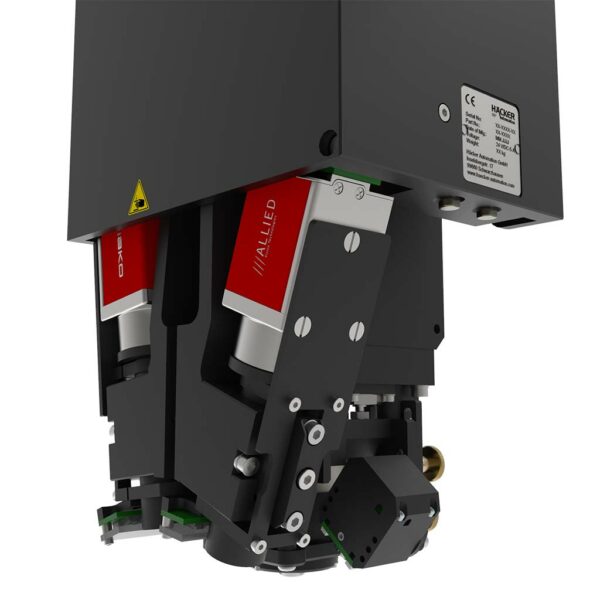

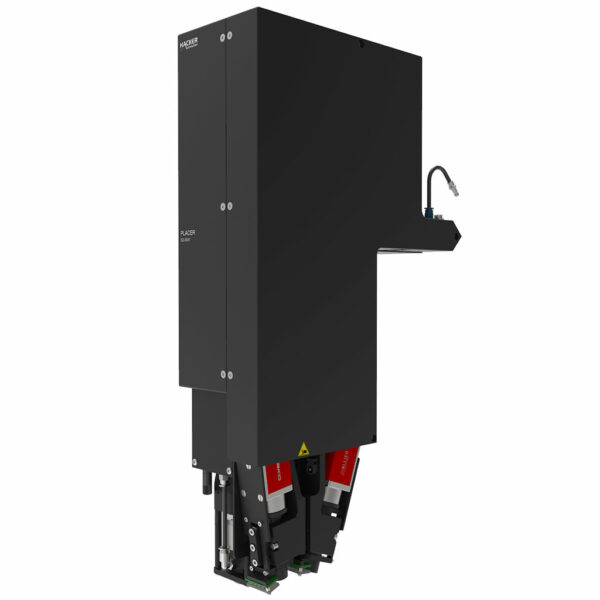

The Placer P (Precision) combines a placement head and a 3D camera head. The combination of the placement function and the 3D object recognition enables a very precise alignment of components. The Placer has a force sensor and integrated vacuum generation.During the placing process, loading forces can act up to 100 N.
The mini camera oriented towards the placement tool enables a constant observation of the process.
Additional information
| Abmessungen in mm (B x T x H) |
99 x 261 x 341 |
|---|---|
| Gewicht in kg |
8.3 |
| Verfahrbereich in Z in mm |
120 |
| Genauigkeit Z-Achse in mm |
± 0.001 |
| Max. Geschwindigkeit Z-Achse in mm/s |
1048 |
| Bewegungsbereich Rotationsachse in Grad |
0 … 360 |
| Max. Geschwindigkeit Rotationsachse in Sekunden |
346 |
| Auflösung Rotationsachse in arcsec |
± 6 |
| Objektivart |
Macro-objective |
| Bildfeld in mm (B x H) |
7.2 x 5.4 |
| Auflösung Kamera in µm |
7.6 |
| Spannung in V |
48 |
| Max. Stromstärke in A |
4 |
| Kommunikationsschnittstelle |
Ethernet |
| Funktionstemperaturbereich in °C |
20 … 35 |
