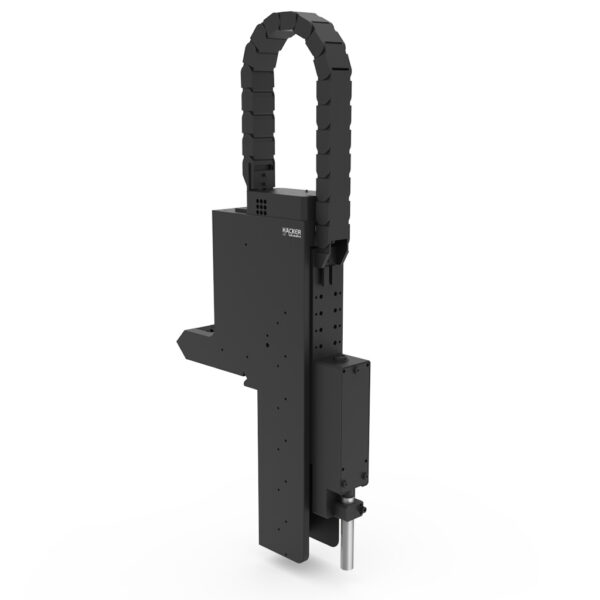

UV Curing Head 365nm
11.500,00 € excl. VAT
Description

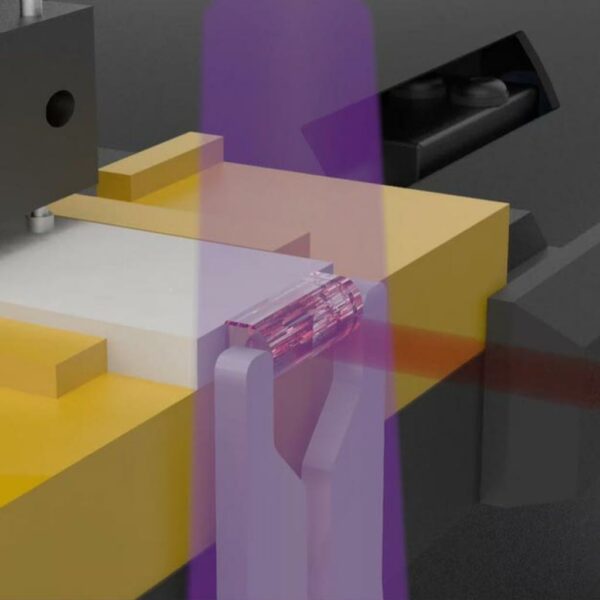

The UV Curing Head is intended to activate and cure special UV dosing materials such as paints, varnishes, silicones, adhesives and sealants by use of UV radiation.
This module is available with different lenses.
| Lens | max. intensity (mW/cm²) | Working distance (mm) | Spot diameter (mm) |
| A | 12000 | 3 | 0,6 |
| B | 5000 | 6 | 1 |
| C | 2000 | 8 | 2 |
| D | 1100 | 10 | 3 |
The intensity of the lens is individually adjustable by software. Lens B is included in the scope of delivery. The lenses A,C, and D can be ordered optionally.
Additional information
| Abmessungen in mm (B x T x H) |
49 x 224 x 514 |
|---|---|
| Gewicht in kg |
4.5 |
| Verfahrbereich in Z in mm |
150 |
| Spannung in V |
24 |
| Max. Stromstärke in A |
4 |
| Kommunikationsschnittstelle |
UNICAN |
| Emissionsspektrum in nm |
365 |
